65QV-SP Vertical Sump Pump


Short Description:

Introduction Type SPSP(R) pumps are vertical, centrifugal slurry pumps which are submerged in sump to work. They are designed for delivering abrasive, large particle and high density slurries. These p...


  • FOB Price: US $ 1800-6600 / Piece
  • Mini. Order: 1 Piece
  • Supply Capacity: 5000 Pieces per Year
  • Payment Term: L/C, T/T, D/P, Western Union, Money Gram
  • Port: HeBei
  • Certificate: ISO9001, SGS, CE
    • Download as PDF


    Introduction

    Type SPSP(R) pumps are vertical, centrifugal slurry pumps which are submerged in sump to work. They are designed for delivering abrasive, large particle and high density slurries. These pumps do not need any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.

    Wet parts of type SP pumps are made of abrasion-resistant metal.

    All parts of type SP(R) pump immersed in liquid are lined with rubber. They are suited to transport the slurry which contains non-edge and abrasive particle .

    The type with “L” is series of sump pump with extended shaft , which is suited for the working condition of deeper level. The guide bearing construction is added to the pump on the basis of the standard pump, so the pump is with both more steady operation and wider application range, but flushing water should be attached to the guide bearing.

    Features

    – Metal or rubber lined wet parts.

    – Vertical construction, less Installation Space.

    – Equipped with replaceable shaft protection sleeve.

    – Double suction semi-open impeller.

    – No submerged bearing or packing.

    – Recessed impeller option passes over-sized material.

    – Agitator option keeps solids in suspension.

    – Can be run in insufficient suction duties.

    – Smooth and stable operation.

    – Special materials or casting for specific liquid.

    Technical Parameters

    Pump  Model
    		 AllowableMax.Power(kw)   Clear Water Performance
    Capacity Q   Head H (m)  Speed  n  (r/min) Max.Eff.   (%) Impeller  Dia. (mm)
         m3/h
    		       l/s
    40PV-SP 15 19.44-43.2 5.4-12 4.5-28.5 1000-2200 40 188
    40PV-SPR 17.28-39.6 4.8-11 4–26 1000-2200 40 188
    65QV-SP 30 23.4-111 6.5-30.8 5-29.5 700-1500 50 280
    65QV-SPR 22.5-105 6.25-29.15 5.5-30.5 700-1500 51 280
    100RV-SP 75 54-289 15-80.3 5-35 500-1200 56 370
    100RV-SPR 64.8-285 18-79.2 7.5-36 600-1200 62 370
    150SV-SP 110 108-479.16 30-133.1 8.5-40 500-1000 52 450
    200SV-SP 110 189-891 152.5-247.5 6.5-37 400-850 64 520
    250TV-SP 200 261-1089 72.5-302.5 7.5-33.5 400-750 60 575
    300TV-SP 200 288-1267 80-352 6.5-33 350-700 50 610

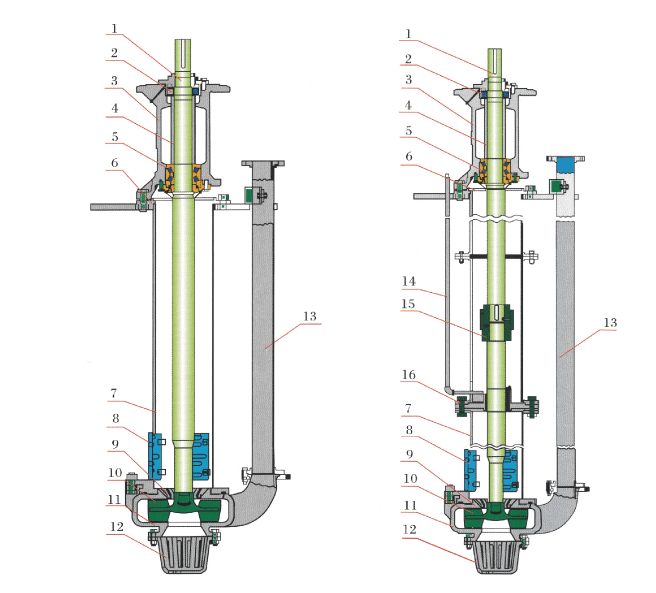

    Construction

    26

    Standard Type                                                          Extension Type

    NO. Parts Name NO. Parts Name
    1 Shaft 9 Back Liner
    2 Bearing 10 Impeller
    3 Bearing Housing  11 Pump Casing
    4 Bearing Spacer   12 Lower Strainer
    5 Bearing 13 Discharge Pipe
    6 Shim 14 Flushing Pipe
    7 Column 15 Coupling Part
    8 Strainer 16 Middle Support Part

















    Advantages

    Over 20 years’ experience in pumps.

    Various pump types.

    Wear resistant materials.

    Specialized Test Equipment.

    Large quantity spare parts.

    Anti-rust treatment casting.

    Application

    Sump pumps are mainly used for handing corrosive, coarse particles and high density slurries, and are widely used in sewage treatment, metallurgy, mining, mineral processing, dredging, de-watering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material…etc. various industrial sites. Our pumps are called different names for different working duties: mineral processing pump, mill discharge slurry pump, booster pump, feeding pump, tailing pump, transfer pump, de-watering screen pump, pressure pump, concentrate pump…
