SH Metal Lined Slurry Pump


Short Description:

Introduction Type SH, SHH,S M pumps are cantilevered, horizontal, centrifugal slurry pumps. They are designed for handling abrasive or corrosive slurry in the metallurgical, mining, coal, power, build...


  • FOB Price: US $ 1200-5500 / Piece
  • Mini. Order: 1 Piece
  • Supply Capacity: 5000 Pieces per Year
  • Payment Term: L/C, T/T, D/P, Western Union, Money Gram
  • Port: HeBei
  • Certificate: ISO9001, SGS, CE
    • Download as PDF


    Introduction

    Type SH, SHH,S M pumps are cantilevered, horizontal, centrifugal slurry pumps. They are designed for handling abrasive or corrosive slurry in the metallurgical, mining, coal, power, building material and other industrial departments etc.

    SH(R), SHH are also called heavy duty slurry pumps, are used to transport the strong abrasive  high density or low density  high head slurry. Under the allowable pressure, the pumps of this type also can be installed in multistage series. SHH type pump is mainly used for transport low density high head or high density low abrasive high head slurry.

    SM(R) is a kind of middle duty slurry pump, is used to transport the fine particle size and middle density slurry.

    The liner and impeller of  SH(R) and SM(R) model can be changeable and material can be either anti-abrasive metal or rubber, but material of liner and impeller of SHH model only can be metal version. Rubber material wet parts are mainly used for transport the slurry which contains fine, non-sharp particle size.

    The shaft seals for type SH(R),S M(R) and SHH pumps can be adoptable of gland seal, expeller seal and mechanical seal. The discharge  can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.

    Advantages
    1. Discharge branch can be positioned at intervals of 45 degree.
    2. Good replaceability of components with original pump.
    3. Wear-resistant metal and long service life time.
    4. With greater axial and radial load rating capacity,
    5. Discharge direction can be installed at intervals of 45 degrees as request and oriented to any eight positions to suit applications.
    6. Suit different working condition.
    7. Wide application, high efficiency and easy to maintain.
    8. Wide options for impeller.
    9. Bearing assembly use grease lubrication.

    Selection Chart and Performance

    Pump      Model        Allowable
    Max. Power
    (kw)    		   Clear Water Performance
       Capacity  Q Head
    H (m)    		  Speed      n (r/min)  Max.Eff.
    （%）    		 NPSH  (m) Impeller. Dia. (mm)
      m3/h         l/s
    1.5 / 1 SH-YB 15 12.6-28.8 3.5-8 6-68 1200-3800 40 2-4 152
    2 / 1.5SH-YB 15 32.4-72 9-20 6-58 1200-3200 45 3.5-8 184
    3 / 2 SH-YC 30 39.6-86.4 11-24 12-64 1300-2700 55 4-6 214
    4 / 3 SH-YC 30 86.4-198 24-55 9-52 1000-2200 71 4-6 245
    4 / 3SH-YD 60 86.4-198 24-55 9-52 1000-2200 71 4-6 245
    6 / 4 SH-YD 60 162-360 45-100 12-56 800-1550 65 5-8 365
    6 / 4 SH-YE 120 162-360 45-100 12-56 800-1550 65 5-8 365
    8 / 6SH-YE 120 360-828 100-230 10-61 500-1140 72 2-9 510
    8 / 6 SH-YR 300 360-828 100-230 10-61 500-1140 72 2-9 510
    10 / 8 SH-YST 560 612-1368 170-380 11-61 400-850 71 4-10 686
    12 / 10SH-YST 560 936-1980 260-550 7-68 300-800 82 6 762
    14 / 12 SH-YST 560 1260-2772 350-770 13-63 300-600 77 3-10 965
    16 / 14 SH-YTU 1200 1368-3060 380-850 11-63 250-550 79 4-10 1067
    20 / 18 SH-YTU 1200 2520-5400 700-1500 13-57 200-400 85 5-10 1370
    1.5 /1 SH-YBR 15 10.8-25.2 3-7 7-52 1400-3400 35 2-4 152
    2 / 1.5SH-YBR 15 25.2-54 7-15 5.5-41 1000-2600 50 2.5-5 178
    3 / 2SH-YCR 30 36-75.6 10-21 13-39 1300-2100 55 2-4 213
    4 / 3 SH-YCR 30 79.2-180 22-50 5-34.5 800-1800 59 3-5 245
    4 / 3 SH-YDR 60 79.2-180 22-50 5-34.5 800-1800 59 3-5 245
    6 / 4 SH-YDR 60 144-324 40-90 12-45 800-1350 65 3-5 365
    6 / 4 SH-YER 120 144-324 40-90 12-45 800-1350 65 3-5 365
    8 / 6SH-YER 120 324-720 90-200 7-49 400-1000 65 5-10 510
    8 / 6 R – AH(R) 300 324-720 90-200 7-49 400-1000 65 5-10 510
    10 / 8 SH-YSTR 560 540-1188 150-330 12-50 400-750 75 4-12 686
    12 / 10  SH-YSTR 560 720-1620 200-450 7-45 300-650 80 2.5-7.5 762
    14 / 12 SH-YSTR 560 1152-2520 320-700 13-44 300-500 79 3-8 965
    16 / 14 T SH-YTUR 1200 1224-2754 340-765 9-43 250-450 82 3-8 1067
    20 / 18SH-YTUR 1200 2268-4860 630-1350 11-46 200-350 82 2-8 1372
    10 / 8SM-YE 120 540-1440 150-400 14-60 600-1000 73 4-10 549
    10 / 8SM-YR 300 540-1440 150-400 14-60 600-1000 73 4-10 549
    1.5 / 1 SHH-YC 30 16.2-34.2 4.5-9.5 25-92 1400-2200 20 2-5.5 330
    3 / 2 SHH-YD 60 68.4-136.8 19-38 25-87 850-1400 47 3-7.5 457
    4 / 3 SHH-YE 120 126-252 35-70 12-97 600-1400 50 2-5 508
    6 / 4SHH-YF 260 324-720 90-200 30-118 600-1000 64 3-8 711
    8 / 6 SHH-YS 560 468-1008 130-280 20-94 500-1000 65 4-12 711
    Remark:
    1. Capacity range recommended: 50%Q’≤Q≤110%Q’(Q’ Appropriate to capacity at highest efficiency point).
    2. NPSH: appropriate to point Q recommended at highest speed

    Construction

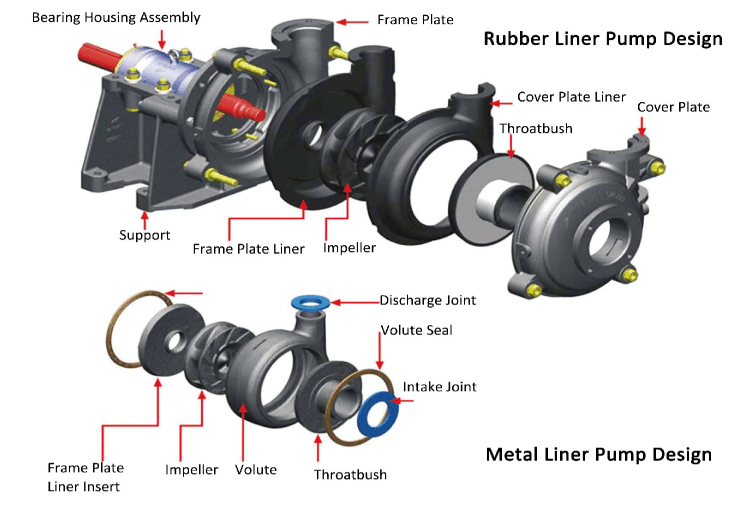

    TheSH type slurry pumps have pump bodies that consist of replaceable wear-resistant metal liners or wear-resistant rubber liners, and impellers can also apply wear-resistant metal material or wear-resistant rubber material. The SHH type slurry pumps only apply wear-resistant metal material as their pump bodies and impellers.

    2

    Application
    SH series slurry pump is widely used in metallurgy, mining, mineral processing, dredging, dewatering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material…etc. various industrial sites. Our pumps are called different names for different working duties: Mineral processing pump, Mill discharge slurry Pump, Booster pump, Feeding pump, Tailing pump, Transfer pump Thickner Underflow Pump, De-watering screen pump, Pressure pump, Concentrate pump…
