100SV-YRVR Rubber Sump Pump


Short Description:

Introduction Type SV\SV(R) pumps are vertical, centrifugal slurry pumps which are submerged in sump to work. They are designed for delivering abrasive, large particle and high density slurries. These ...


  • FOB Price: US $ 1500-7800 / Piece
  • Mini. Order: 1 Piece
  • Supply Capacity: 5000 Pieces per Year
  • Payment Term: L/C, T/T, D/P, Western Union, Money Gram
  • Port: HeBei
  • Certificate: ISO9001, SGS, CE
    • Download as PDF


    Introduction

    Type SV\SV(R) pumps are vertical, centrifugal slurry pumps which are submerged in sump to work. They are designed for delivering abrasive, large particle and high density slurries. These pumps do not need any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.

    Wet parts of type SV pumps are made of abrasion-resistant metal.

    All parts of type SV(R) pump immersed in liquid are lined with rubber. They are suited to transport the slurry which contains non-edge and abrasive particle .

    The type with “L” is series of sump pump with extended shaft , which is suited for the working condition of deeper level. The guide bearing construction is added to the pump on the basis of the standard pump, so the pump is with both more steady operation and wider application range, but flushing water should be attached to the guide bearing.

    Features

    – Metal or rubber lined wet parts.

    – Vertical construction, less Installation Space.

    – Equipped with replaceable shaft protection sleeve.

    – Double suction semi-open impeller.

    – No submerged bearing or packing.

    – Recessed impeller option passes over-sized material.

    – Agitator option keeps solids in suspension.

    – Can be run in insufficient suction duties.

    – Smooth and stable operation.

    – Special materials or casting for specific liquid.

    Technical Parameters

     Pump   Model    AllowableMax.Power(kw)   Clear Water Performance
       Capacity Q   HeadH(m)  Speed    n  (r/min) Max.Eff. (%) Impeller  Dia. (mm)
         m3/h
    		    l/s
    40SV-YPV 15 19.44-43.2 5.4-12 4.5-28.5 1000-2200 40 188
    40SV-YPVR 17.28-39.6 4.8-11 4–26 1000-2200 40 188
    65SV-YQV 30 23.4-111 6.5-30.8 5-29.5 700-1500 50 280
    65SV-YQVR 22.5-105 6.25-29.15 5.5-30.5 700-1500 51 280
    100SV-YRV 75 54-289 15-80.3 5-35 500-1200 56 370
    100SV-YRVR 64.8-285 18-79.2 7.5-36 600-1200 62 370
    150SV-YSV 110 108-479.16 30-133.1 8.5-40 500-1000 52 450
    200SV-YSV 110 189-891 152.5-247.5 6.5-37 400-850 64 520
    250SV-YTV 200 261-1089 72.5-302.5 7.5-33.5 400-750 60 575
    300SV-YTV 200 288-1267 80-352 6.5-33 350-700 50 610

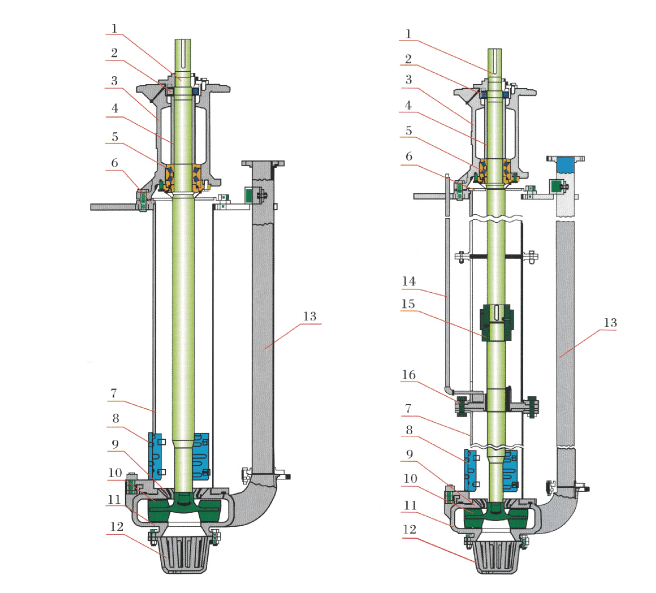

    Construction

    26

                                           Standard Type                                                           Extension Type

    NO. Parts Name NO. Parts Name
    1 Shaft 9 Back Liner
    2 Bearing 10 Impeller
    3 Bearing Housing 11 Pump Casing
    4 Bearing Spacer 12 Lower Strainer
    5 Bearing 13 Discharge Pipe
    6 Shim 14 Flushing Pipe
    7 Column 15 Coupling Part
    8 Strainer 16 Middle Support Part

















    Advantages

    Over 20 years’ experience in pumps.

    Various pump types.

    Wear resistant materials.

    Specialized Test Equipment.

    Large quantity spare parts.

    Anti-rust treatment casting.

    Application

    Sump pumps are mainly used for handing corrosive, coarse particles and high density slurries, and are widely used in sewage treatment, metallurgy, mining, mineral processing, dredging, de-watering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material…etc. various industrial sites. Our pumps are called different names for different working duties: mineral processing pump, mill discharge slurry pump, booster pump, feeding pump, tailing pump, transfer pump, de-watering screen pump, pressure pump, concentrate pump…
