4RV-AF Froth Pump
Product Features AF series froth pumps are our company newly designed & developed products based on the advanced technology from home and abroad. Being popularized and promoted; now they are widel...
AF series froth pumps are our company newly designed & developed products based on the advanced technology from home and abroad. Being popularized and promoted; now they are widely used in metallurgical industry, mining sector, coal ore and chemical engineering to handle abrasive and corrosive slurries with foam and froth. When operated, AF pumps can effectively eliminate foam and froth in slurry and will also function properly even with inadequate feeding slurry, thus making them the ideal choice for delivering foam slurries, esp. in flotation process.
- Bearing assembly of AF series is the same with that of SP, SPR series. Bearing housing is installed with motor frame base or supporting plate, i.e. pump and motor are connected either directly with coupling or through pulley and belts. Pulleys can be exchanged conveniently to adjust the pump rotating speed to satisfy the varying operating conditions.
- Feeding tank can be steel , stainless steel or coated with rubber with overflow box and tangential inlet. The former can transmit the excessive incoming slurry back to its pit, while the latter will allow the slurry quickly get into the pump body and make part of the foams disappear.
- Double casings structure the pump head. Wetted parts are metal lined, rubber lined or of other non-metallic material according to the different slurries.

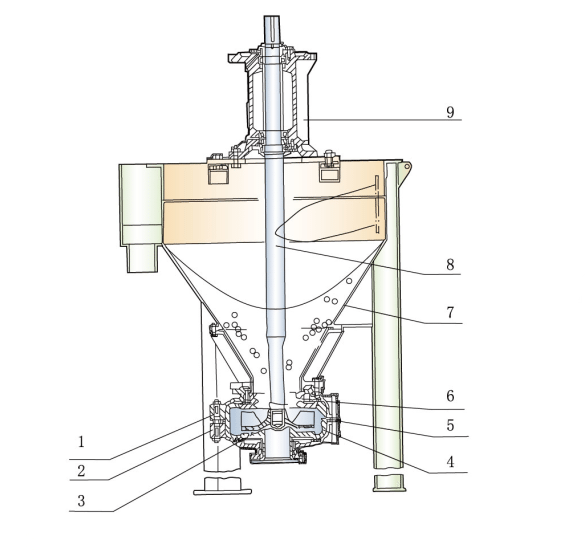

|1||Frame Plate||2||Cover Plate||3||Cover Plate Liner Insert|
|4||Volute Liner||5||Impeller||6||Frame Plate Liner Insert|

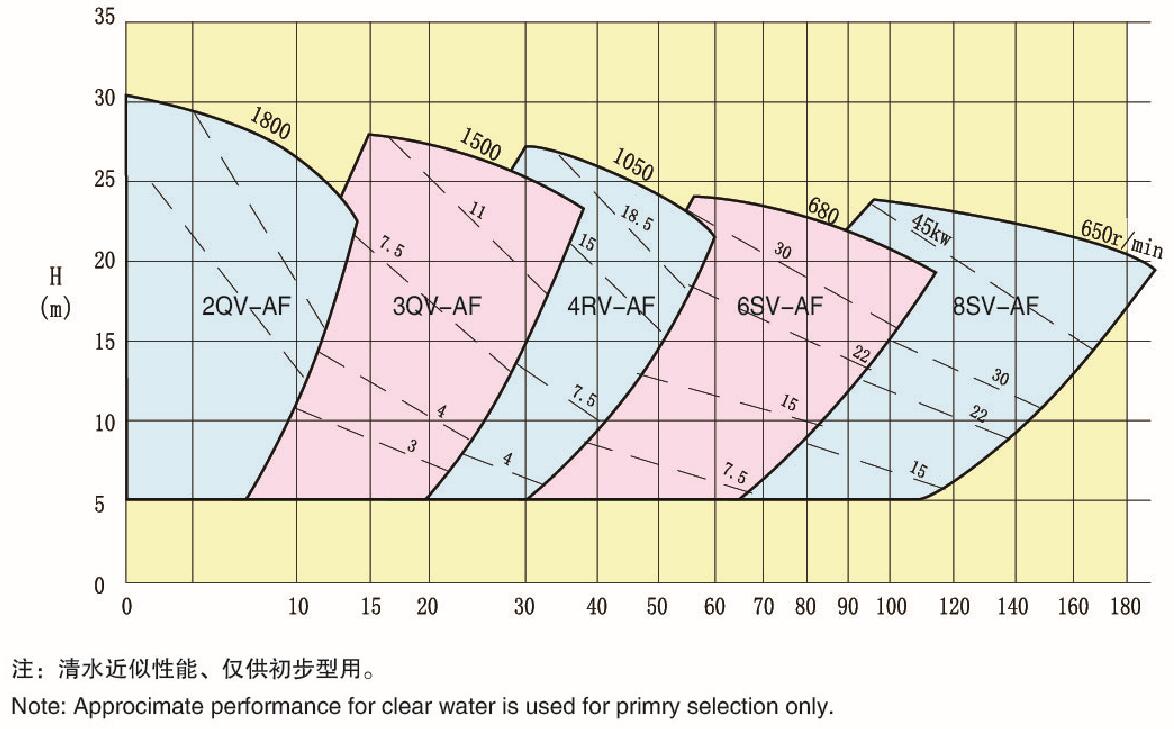

|Pump Model||Capacity (m3/h)||Head (m)||Speed (r/min)||Eff. (%)||Diameter|
